How Does a Butterfly Valve Open and Close? Full Operating Guide Butterfly valves are the most widely used quarter-turn flow control devices in industrial and municipal piping systems. Many engineers and procurement specialists select industrial butterfly valves for their compact size and cost-saving advantages, yet few fully understand the complete mechanical process of how a butterfly valve opens and closes. Unlike linear-stroke gate valves and globe valves, butterfly valves rely on precise rotary motion to change pipeline flow status. This article clearly explains the opening and closing working process, mechanical logic of different valve designs, actuation modes, and sealing coordination principles. 1. Basic Open and Close Principle of Butterfly Valves The entire opening and closing action of a butterfly valve is completed through a 90-degree quarter-turn rotation. The core moving parts include the valve stem and internal butterfly disc. The stem receives torque from manual or automated actuators and drives the disc to rotate horizontally inside the pipeline bore, realizing full opening, full closing, and intermediate throttling states. Closing Process (90° → 0°): The disc gradually rotates perpendicular to the fluid flow direction, continuously narrowing the flow passage. When reaching 0 degrees, the disc completely presses against the valve seat, blocking the pipeline and achieving tight shutoff. Opening Process (0° → 90°): The disc rotates parallel to the fluid direction, gradually expanding the flow area. At 90 degrees, the disc is fully opened, minimizing flow resistance and allowing maximum fluid passage. This simple rotary operation is what makes wafer butterfly valves and lug butterfly valves so popular for large-bore piping. 2. Complete Mechanical Action Process   The opening and closing cycle follows a fixed mechanical transmission chain, ensuring accurate and stable operation: First, the operating device (lever, gearbox, pneumatic or electric actuator) outputs rotational torque. The torque is transmitted to the central valve stem through the driving shaft. The integrated stem and disc structure rotates synchronously without idle travel. During movement, the disc gradually separates from or compresses against the sealing seat. Finally, the mechanical limit device locks the angle to complete opening or closing positioning. 3. Different Opening & Closing Logic by Valve Structure Concentric and offset butterfly valves have obvious differences in opening and closing friction, which directly affects service life and operating stability: 3.1 Concentric Butterfly Valve Operation Concentric butterfly valves have overlapping centers of the stem, disc, and pipeline. During every opening and closing stroke, the disc keeps continuous contact and friction with the seat. The operation is simple and cost-effective, suitable for low-frequency switching of conventional water treatment and HVAC pipelines. 3.2 Triple Offset Butterfly Valve Zero-Friction Operation Triple offset butterfly valves adopt a three-dimensional offset structure. During the opening process, the disc instantly separates from the seat without friction. During closing, the disc only contacts the seat at the final locking position. This zero-friction opening and closing mechanism greatly reduces seat wear, making this style of heavy duty butterfly valves suitable for high-temperature, high-pressure, and frequent switching industrial pipelines. 4. Sealing Coordination During Opening and Closing Different sealing types match different opening and closing mechanical characteristics: 4.1 Soft Seated Butterfly Valve Soft seated butterfly valves with EPDM or NBR seats rely on elastic compression to achieve zero leakage when fully closed. During closing, the disc gently squeezes the elastic seat to fill tiny gaps. During opening, the elastic seat resets automatically. This flexible sealing opening and closing mode ensures bubble-tight shutoff for clean water and gas media. 4.2 Metal Seated Butterfly Valve Metal seated butterfly valves adopt precision metal-to-metal matching. The opening and closing process realizes rigid mechanical fitting and separation. With high wear resistance and temperature resistance, they maintain stable switching performance in harsh working conditions such as high-temperature steam and abrasive slurry. 5. Opening and Closing Modes of Automated Butterfly Valves Modern industrial pipelines use automated butterfly valves to realize intelligent opening and closing control: Pneumatic Butterfly Valve: Driven by compressed air, it completes fast opening and closing strokes in seconds. With explosion-proof advantages, it is widely used in chemical and petrochemical pipeline switching. Electric Butterfly Valve: Driven by electric actuators, it features stable speed, precise angle positioning, and remote signal control. It supports delayed opening/closing and intermediate positioning, suitable for intelligent pipeline systems. Manual Butterfly Valve: Operated by lever or gear handwheel, it realizes on-site manual opening and closing, economical and convenient for low-frequency operation scenarios. 6. Common Opening & Closing Faults and Causes Valve jamming: Caused by sediment deposition, seat aging, or insufficient actuator torque Incomplete closing and leakage: Disc offset, seat wear, or foreign matter blocking the sealing surface Slow opening and closing speed: Pneumatic air pressure insufficiency or electric actuator parameter deviation 7. GEKO Valve Precise Opening & Closing Performance All GEKO butterfly valves adopt optimized rotary motion structure, ensuring flexible, smooth, and accurate opening and closing actions. Our full product range including wafer, lug, soft seat, metal seat, and triple offset butterfly valves achieves zero-friction switching, stable sealing, and long service life. Automated modulating butterfly valves support arbitrary angle opening and closing, meeting isolation and throttling control requirements of modern industrial piping systems.

What Is the Role of a Butterfly Valve in Piping Systems? Industrial and municipal piping networks transport liquids, gases and slurries across vast facilities, requiring reliable flow control hardware to keep operations safe and predictable. As a popular quarter-turn valve, the butterfly valve performs multiple core functions within piping systems. Its compact build, lightweight body and flexible operating modes make it a go-to choice for many pipeline designs, from large water mains to chemical processing lines. This article breaks down the key roles butterfly valves play in piping systems and where their strengths shine. 1. Fluid Isolation for Pipeline Maintenance & Emergency Shutoff One primary role of a butterfly valve is positive isolation. When a pipe segment, pump or downstream equipment needs inspection or repair, operators close the butterfly valve to fully cut off fluid flow. In emergency scenarios such as pipeline overpressure or equipment failure, it can rapidly shut down the line to prevent spillage and system damage. Lug and flange butterfly valves are commonly used for isolation duties, with PTFE or EPDM seats delivering tight shutoff performance. 2. Flow Throttling and Flow Regulation Beyond simple on/off service, butterfly valves are widely used for throttling flow. By rotating the disc to partial opening positions, the valve adjusts the cross-sectional flow area, controlling the volume and velocity of fluid moving through the piping. This function helps stabilize pressure and maintain consistent flow rates for processes like water distribution, HVAC circulation and chemical transfer. Note that precise throttling requires proper material selection to avoid disc erosion from high-speed media. 3. Pressure Control and Surge Mitigation Butterfly valves assist in managing pipeline pressure. Gradual opening or closing can moderate pressure spikes caused by pump start-up and shutdown. In large-diameter piping systems, slow-actuated butterfly valves help reduce water hammer effects that may damage pipe fittings and instruments. Pneumatic or electric actuators are often paired with butterfly valves for automated pressure regulation in modern piping networks.   4. Diversion and Flow Direction Switching In multi-branch piping layouts, sets of butterfly valves work together to divert fluid to different branches. For example, in water treatment plants, they switch flow between filter banks, or in district heating systems, they redirect hot water to different building zones. This eliminates the need to shut down the entire piping system when rerouting process media. 5. Backflow Prevention (Auxiliary Function) While butterfly valves are not dedicated check valves, properly specified butterfly valves can help limit unwanted reverse flow in certain low-risk piping applications. For critical backflow protection, they are usually combined with dedicated check valves as part of a complete piping safety assembly. Key Benefits of Butterfly Valves for Piping Networks Space-saving design: Much thinner than gate or globe valves, ideal for tight pipe rack installations Light weight: Reduces structural load on pipe supports, lowering overall project cost Fast quarter-turn operation: Manual lever, gear, pneumatic or electric actuation options available Wide size range: Works for both small process lines and large diameter main pipelines Corrosion-resistant options: Lined butterfly valves available for corrosive chemical media Selection Tips According to Piping Roles Choose resilient seated butterfly valves for water and wastewater isolation tasks. For corrosive fluids, PTFE lined butterfly valves are recommended. If automatic control is required, specify pneumatic or electric actuators to integrate with plant control systems. Confirm pressure class, flange standard and seat material to match your piping medium and operating temperature. Summary Within piping systems, butterfly valves serve five major purposes: fluid isolation, flow throttling, pressure management, flow diversion and auxiliary backflow control. Thanks to their compact footprint and versatile actuation choices, butterfly valves deliver dependable flow control across water, chemical, power and HVAC piping networks. Selecting the correct butterfly valve design ensures stable, long-term pipeline operation and reduces unplanned downtime.

  What Is a Butterfly Valve and What Are Its Key Components? A butterfly valve is a popular quarter-turn flow control device widely used in municipal and industrial piping systems to regulate, throttle, or completely shut off fluid flow. Its slim, lightweight design makes it far more space-saving than ball valves or gate valves, especially for large-diameter pipelines. Many new buyers and plant engineers want to understand exactly what a butterfly valve is and how each internal part works together to deliver reliable performance. This article breaks down the definition, core function, and all key components of a butterfly valve.   Definition and Core Function of a Butterfly Valve At its simplest, a butterfly valve controls fluid by rotating a circular disc inside the pipeline. A 90-degree rotation switches the valve between fully open and fully closed positions. It can also stay at intermediate angles for throttling flow. Wafer butterfly valves and lug butterfly valves are the two most common body styles, while offset designs like triple offset butterfly valves handle demanding high-temperature and high-pressure applications. Butterfly valves work with water, air, gas, and many chemical media across water treatment, HVAC, power, and chemical processing industries. Key Components of a Butterfly Valve 1. Valve Body The valve body forms the main pressure-containing shell and connects to the pipeline. Wafer-style bodies fit between two pipe flanges without bolt lugs. Lug bodies have threaded lugs built into the valve to hold flanges securely. Heavy-duty metal seated butterfly valves use cast iron, ductile iron, stainless steel, or alloy steel bodies to withstand harsh working environments. 2. Butterfly Disc The disc is the circular plate inside the body that blocks or allows fluid passage. It rotates with the valve stem. The disc shape directly impacts flow resistance. Concentric valves use a flat disc; double offset and triple offset valves use contoured discs to reduce seat friction during rotation. For corrosive media, discs are coated or made from stainless steel to extend service life. 3. Valve Stem The stem is a shaft that passes through the valve body and attaches firmly to the disc. It transfers torque from the actuator or handwheel to rotate the disc. Most stems are made of high-strength stainless steel to resist torsion and corrosion. Many designs use a one-piece stem and disc connection to eliminate play and improve control precision. 4. Seat / Sealing Ring The seat creates the sealing contact surface between the disc and valve body. Soft seated butterfly valves use elastomer seats such as EPDM or PTFE to achieve bubble-tight shutoff for clean media. Metal seated versions use metal-to-metal sealing surfaces, suited for high temperature, abrasive, or steam media where rubber seats cannot survive.   5. Stem Seals & Gaskets Stem seals prevent fluid leakage along the stem where it exits the valve body. Packing rings or O-rings form the primary barrier. They are critical to prevent fugitive emissions, especially for chemical and oil & gas applications. 6. Actuator / Operating Unit The actuator supplies torque to turn the stem and disc. Manual versions use a handwheel or lever. Pneumatic butterfly valves use compressed air for fast on/off or modulating control. Electric butterfly valves allow remote automated operation and precise flow adjustment. Positioners can be fitted to modulating actuators to maintain exact disc angles. How These Components Work Together When the actuator turns the valve stem, the disc rotates inside the body. In closed position, the disc presses against the seat to block fluid. When opened, the disc turns parallel to flow so media can pass through. All parts must be properly matched to the working pressure, temperature, and medium. A mismatch in seat or disc material will quickly cause leakage and premature failure. GEKO Valve Butterfly Valve Range GEKO Valve supplies complete butterfly valve assemblies with high-quality components. Our range includes soft seated and metal seated, concentric, double offset and triple offset butterfly valves, available in wafer, lug, flanged designs with manual, pneumatic or electric actuators for industrial and municipal projects worldwide. 9 Core SEO Keywords: Wafer Butterfly Valve, Lug Butterfly Valve, Triple Offset Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Pneumatic Butterfly Valve, Electric Butterfly Valve, Automated Butterfly Valve, Heavy Duty Butterfly Valve

 蝶阀是一种高效的四分之一转流量控制装置，广泛应用于商业和工业管道系统。蝶阀以其超紧凑的结构、轻巧的设计、快速的操作和经济的优势而著称，其结构布局和工作原理与球阀、闸阀和截止阀有很大不同。它是大口径管道流量隔离、节流和调节的首选阀型。为了帮助工程师和采购人员在不同项目中准确应用蝶阀，本指南全面阐述了蝶阀的定义、内部结构、工作原理、阀芯类型和工业特性。1. 什么是蝶阀？蝶阀是一种旋转运动阀，它利用圆盘状的阀瓣来控制流体流量。其核心部件包括阀体、阀杆、蝶瓣和密封座。与传统的工业阀门相比，蝶阀具有阀瓣间距更短、重量更轻、安装空间更小等优点，因此非常适合球阀和闸阀体积庞大且成本高昂的大口径管道系统。工业蝶阀适用于液体、气体和低粘度流体介质，广泛应用于水处理、暖通空调、消防、化工、电力和市政工程系统。它们可实现全开、全关和部分流量节流，兼具隔离和调节功能。 2. 蝶阀的核心结构蝶阀的稳定运行取决于其结构系统的精确匹配。主要部件及其功能如下：阀体：主承压壳体，可采用铸铁、球墨铸铁、碳钢和不锈钢材料，承受整个管道的压力载荷。气门杆：连接执行器和蝶形盘的传动轴，传递旋转扭矩以驱动蝶形盘旋转。蝴蝶盘：核心流量控制组件，旋转 90 度以阻塞或打开流体通道；流线型盘片设计有效降低流动阻力。密封座：安装在阀体内壁上，包括橡胶软密封和金属硬密封类型，负责管道的严密关闭。驱动装置包括手动杆、齿轮、气动和电动执行器，用于控制阀门的切换和调节。3. 蝶阀的工作原理是什么？蝶阀的工作原理基于 90度四分之一圈旋转运动具有简单高效的操作逻辑：当阀门接收到开启信号时，执行器驱动阀杆和蝶形阀瓣水平旋转90度。此时，蝶形阀瓣与流体流动方向平行，管道形成完全开放的通道，流动阻力最小。关闭阀门时，阀瓣再次旋转90度，与流体流动方向垂直。阀瓣表面与密封座紧密贴合，完全阻断流体通道，实现管道隔离和严密关闭。除了完全打开和关闭外，蝶阀的阀瓣还可以保持在 0° 到 90° 之间的任何中间角度，实现精确的流量节流和压力调节，这使得蝶阀在流量控制性能方面优于闸阀。4. 按结构和密封方式划分的蝶阀主要类型根据密封形式和结构设计，工业蝶阀分为两大类，分别适应不同的工作条件：4.1 软密封蝶阀软密封蝶阀采用EPDM、NBR、Viton等弹性橡胶材料作为密封件，利用橡胶的弹性形变实现气密性零泄漏。该阀门成本低、密封性能好，适用于常温水、空气及常规非腐蚀性介质，广泛应用于市政给水、暖通空调和消防系统。4.2 金属密封蝶阀金属密封蝶阀采用金属对金属硬质密封结构，阀瓣和阀座表面均经合金硬面堆焊处理。该阀门具有耐高温、耐高压和耐磨损的特性，能够适应高温蒸汽、烟气和腐蚀性工业介质等工况，是重载工业严苛工况下的理想选择。4.3 晶片式蝶阀与凸耳式蝶阀晶片式蝶阀夹在两个管道法兰之间，超薄本体，节省空间，适用于紧凑型安装场景。蝶阀两侧带有螺纹凸耳，螺栓固定安装，支持单端管道维护和拆卸，方便工业管道大修。5. 手动与自动蝶阀操作蝶阀支持多种驱动模式，以满足不同的运行频率和自动化需求：手动蝶阀配备操纵杆或齿轮操作器，适合低频现场手动操作，经济实惠且易于维护。气动蝶阀：采用气压驱动，切换速度快，防爆性能优异，适用于危险的工业环境。电动蝶阀：由电动执行器驱动，支持远程控制、信号反馈和比例调节，与智能管道控制系统相匹配。6. 蝶阀的主要优点超紧凑轻便，节省安装空间和工程成本快速90度四分之一转操作，提高管道响应效率适用于大直径管道系统，总体成本低。隔离和流量节流的双重功能结构简单，易损件少，维护成本低。7. 蝶阀的工业应用蝶阀广泛应用于中低压、大流量管道应用场景，包括市政水处理、暖通空调制冷系统、消防管道系统、化工流体输送、电厂循环水系统以及环境保护废气和烟气处理工程。8. GEKO阀门高品质蝶阀解决方案GEKO阀门提供全系列工业蝶阀，包括对夹式和凸耳式、软密封和金属密封设计，以及手动、气动和电动蝶阀。我们的产品采用精密铸造和流线型阀瓣设计，具有密封性能稳定、操作灵活、工况适应性强等特点。所有阀门均符合国际工业标准，为全球市政和工业管道项目提供可靠的大口径流体控制解决方案。9个核心SEO关键词：对夹式蝶阀、凸耳式蝶阀、软密封蝶阀、金属密封蝶阀、气动蝶阀、电动蝶阀、大口径蝶阀、工业蝶阀、四分之一转蝶阀

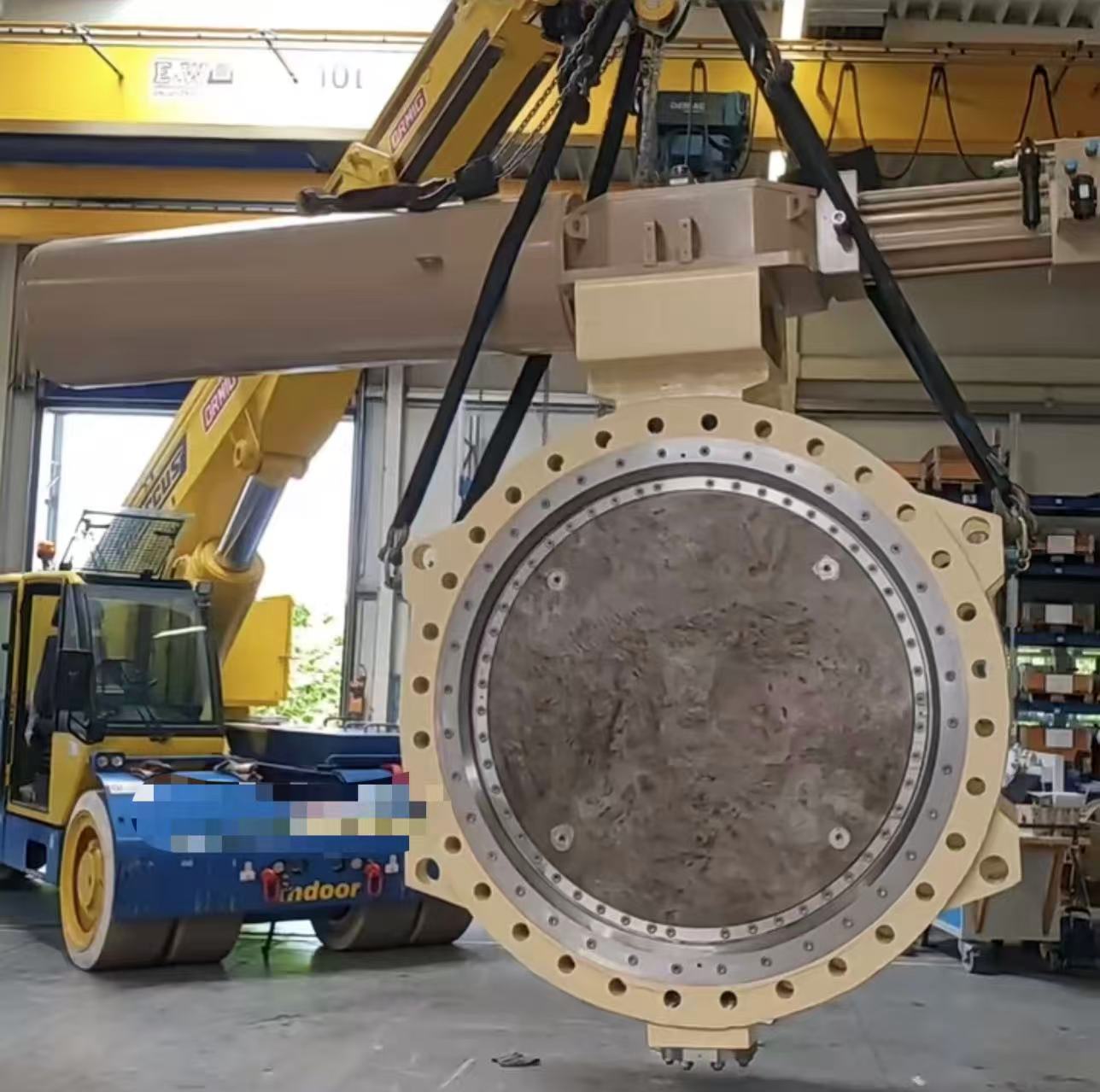

 什么是蝶阀？它的工作原理是什么？完整指南蝶阀是一种高效的四分之一转流量控制装置，广泛应用于商业和工业管道系统。蝶阀以其超紧凑的结构、轻巧的设计、快速的操作和经济的优势而著称，其结构布局和工作原理与球阀、闸阀和截止阀有很大不同。它是大口径管道流量隔离、节流和调节的首选阀型。为了帮助工程师和采购人员在不同项目中准确应用蝶阀，本指南全面阐述了蝶阀的定义、内部结构、工作原理、阀芯类型和工业特性。1. 什么是蝶阀？蝶阀是一种旋转运动阀，它利用圆盘状的阀瓣来控制流体流量。其核心部件包括阀体、阀杆、蝶瓣和密封座。与传统的工业阀门相比，蝶阀具有阀瓣间距更短、重量更轻、安装空间更小等优点，因此非常适合球阀和闸阀体积庞大且成本高昂的大口径管道系统。工业蝶阀适用于液体、气体和低粘度流体介质，广泛应用于水处理、暖通空调、消防、化工、电力和市政工程系统。它们可实现全开、全关和部分流量节流，兼具隔离和调节功能。 2. 蝶阀的核心结构蝶阀的稳定运行取决于其结构系统的精确匹配。主要部件及其功能如下：阀体：主承压壳体，可采用铸铁、球墨铸铁、碳钢和不锈钢材料，承受整个管道的压力载荷。气门杆：连接执行器和蝶形盘的传动轴，传递旋转扭矩以驱动蝶形盘旋转。蝴蝶盘：核心流量控制组件，旋转 90 度以阻塞或打开流体通道；流线型盘片设计有效降低流动阻力。密封座：安装在阀体内壁上，包括橡胶软密封和金属硬密封类型，负责管道的严密关闭。驱动装置包括手动杆、齿轮、气动和电动执行器，用于控制阀门的切换和调节。3. 蝶阀的工作原理是什么？蝶阀的工作原理基于 90度四分之一圈旋转运动具有简单高效的操作逻辑：当阀门接收到开启信号时，执行器驱动阀杆和蝶形阀瓣水平旋转90度。此时，蝶形阀瓣与流体流动方向平行，管道形成完全开放的通道，流动阻力最小。关闭阀门时，阀瓣再次旋转90度，与流体流动方向垂直。阀瓣表面与密封座紧密贴合，完全阻断流体通道，实现管道隔离和严密关闭。除了完全打开和关闭外，蝶阀的阀瓣还可以保持在 0° 到 90° 之间的任何中间角度，实现精确的流量节流和压力调节，这使得蝶阀在流量控制性能方面优于闸阀。4. 按结构和密封方式划分的蝶阀主要类型根据密封形式和结构设计，工业蝶阀分为两大类，分别适应不同的工作条件：4.1 软密封蝶阀软密封蝶阀采用EPDM、NBR、Viton等弹性橡胶材料作为密封件，利用橡胶的弹性形变实现气密性零泄漏。该阀门成本低、密封性能好，适用于常温水、空气及常规非腐蚀性介质，广泛应用于市政给水、暖通空调和消防系统。4.2 金属密封蝶阀金属密封蝶阀采用金属对金属硬质密封结构，阀瓣和阀座表面均经合金硬面堆焊处理。该阀门具有耐高温、耐高压和耐磨损的特性，能够适应高温蒸汽、烟气和腐蚀性工业介质等工况，是重载工业严苛工况下的理想选择。4.3 晶片式蝶阀与凸耳式蝶阀晶片式蝶阀夹在两个管道法兰之间，超薄本体，节省空间，适用于紧凑型安装场景。蝶阀两侧带有螺纹凸耳，螺栓固定安装，支持单端管道维护和拆卸，方便工业管道大修。5. 手动与自动蝶阀操作蝶阀支持多种驱动模式，以满足不同的运行频率和自动化需求：手动蝶阀配备操纵杆或齿轮操作器，适合低频现场手动操作，经济实惠且易于维护。气动蝶阀：采用气压驱动，切换速度快，防爆性能优异，适用于危险的工业环境。电动蝶阀：由电动执行器驱动，支持远程控制、信号反馈和比例调节，与智能管道控制系统相匹配。6. 蝶阀的主要优点超紧凑轻便，节省安装空间和工程成本快速90度四分之一转操作，提高管道响应效率适用于大直径管道系统，总体成本低。隔离和流量节流的双重功能结构简单，易损件少，维护成本低。7. 蝶阀的工业应用蝶阀广泛应用于中低压、大流量管道应用场景，包括市政水处理、暖通空调制冷系统、消防管道系统、化工流体输送、电厂循环水系统以及环境保护废气和烟气处理工程。8. GEKO阀门高品质蝶阀解决方案GEKO阀门提供全系列工业蝶阀，包括对夹式和凸耳式、软密封和金属密封设计，以及手动、气动和电动蝶阀。我们的产品采用精密铸造和流线型阀瓣设计，具有密封性能稳定、操作灵活、工况适应性强等特点。所有阀门均符合国际工业标准，为全球市政和工业管道项目提供可靠的大口径流体控制解决方案。9个核心SEO关键词：对夹式蝶阀、凸耳式蝶阀、软密封蝶阀、金属密封蝶阀、气动蝶阀、电动蝶阀、大口径蝶阀、工业蝶阀、四分之一转蝶阀
