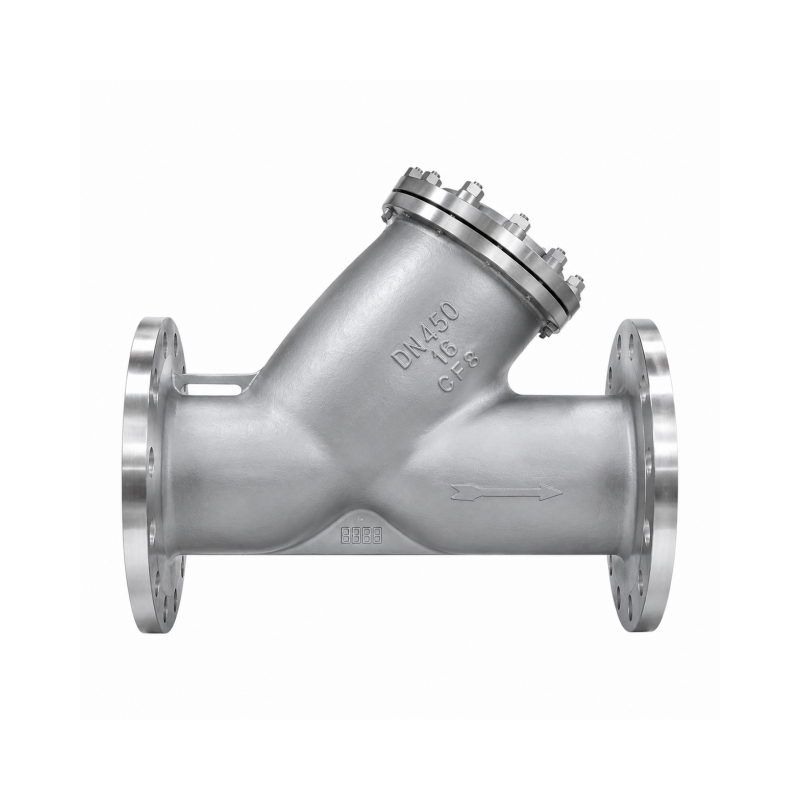

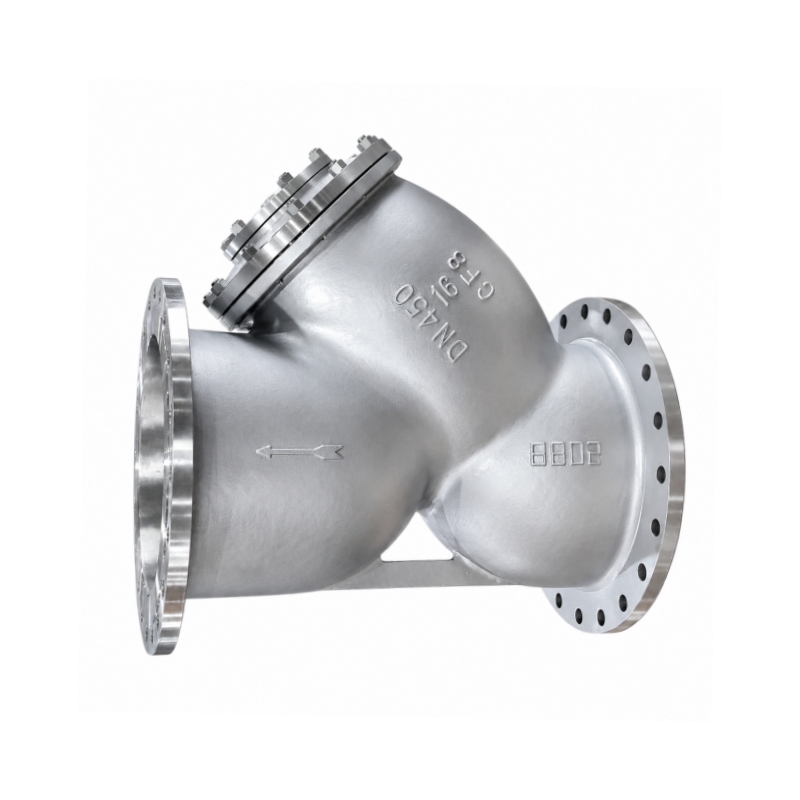

Name: Industrial Y Strainer & Filter – Stainless Steel, Cast Iron Pipeline Filtration
Availability: InStock

Size Range

NPS 1/2" to 30", DN15 to DN750

Operating Pressure

Class 150LB to 2500LB, PN10 to PN420

Face To Face

ASME B16.34, EN12516, GB/T 12237

Body Materials

Carbon Steel: ASTM A216 WCB, WCC; Stainless Steel: SS304, SS316, CF8, CF8M; Cast Iron / Ductile Iron; Bronze / Brass; Special Alloys: Inconel, Hastelloy, Monel, Titanium, Nickel-Based Alloys.

Screen / Filter Materials

Stainless Steel SS304 / SS316, Perforated Sheet, Woven Mesh

Sealing Materials

PTFE, RTFE, Graphite, Metal-to-Metal

Connection

Flanged (RF, RTJ), Butt Weld (BW), Socket Weld (SW)

Design Standard

ASME B16.34, EN12516, API 602

Operation

Manual, Pneumatic, Electric Actuator

Flow Direction

Arrow-marked, inline installation

Testing Standard

API 598, EN12266

Applications

Oil & Gas, Chemical, Power, Water Treatment, Food & Beverage, Pulp & Paper, General Industrial

GEKO's Y Strainer & Filter is a durable industrial pipeline filtration device

designed to remove solid particles from liquids and gases. Made from

high-quality stainless steel or carbon steel, it protects pumps, valves,

and other equipment while ensuring smooth and reliable operation. Ideal

for oil, chemical, power, water treatment, and food processing industries.

Available in carbon steel, stainless steel (304/316), cast iron, bronze, and

specialty alloys for high corrosion, high temperature, and industrial

applications.

Efficient Filtration – Y-shaped design captures solid particles, protecting pumps, valves, and equipment.

Durable Materials – Stainless steel, carbon steel, cast iron, bronze, and special alloys for high corrosion and high-temperature use.

Easy Maintenance – Replaceable filter screen allows quick cleaning and minimal downtime.

Versatile Application – Ideal for oil & gas, chemical, water treatment, power, and food industries.

Oil & Gas Industry
Used in pipelines to filter solid particles and protect pumps, valves, and other equipment, ensuring safe and efficient transport of crude oil, natural gas, and other fluids.

Operating Conditions: High-pressure tolerance, extreme temperature resistance, corrosion-resistant materials, robust construction for harsh industrial environments.
Chemical Processing
Controls flow and filters impurities in chemical plants, maintaining optimal reaction conditions and protecting sensitive equipment.

Operating Conditions: Corrosion-resistant materials, high temperature and pressure tolerance, smooth internal structure to reduce clogging and ensure continuous chemical flow.
Water & Wastewater Treatment
Used in water treatment facilities and wastewater systems to remove particles and protect pumps, valves, and filtration units.

Operating Conditions: Sanitary and corrosion-resistant materials, reliable pressure regulation, smooth surfaces for easy maintenance, ensures consistent water flow.
Food & Beverage Industry
Filters liquids in food and beverage production, protecting equipment and ensuring product quality in processes such as pasteurization, bottling, and fermentation.

Operating Conditions: Food-safe materials, smooth internal surfaces, hygienic design, high-temperature tolerance, prevents contamination and ensures minimal leakage.
Pharmaceutical & Biotech
Maintains clean pipelines in pharmaceutical and biotech production, ensuring safe and efficient transport of liquids and gases.

Operating Conditions: GMP/ISO compliant, corrosion-resistant and hygienic materials, precise filtration to maintain consistency and safety in drug production.
HVAC Systems
Filters and protects fluid circuits in heating, ventilation, and air conditioning systems, maintaining efficient operation of pumps and compressors.

Operating Conditions: Moderate pressure range, corrosion-resistant materials, smooth surfaces for easy maintenance, supports energy-efficient system operation.
Pulp & Paper Industry
Used in pulp and paper plants to remove fibers and other solid impurities from process water and chemicals, protecting pumps and equipment.

Operating Conditions: Corrosion-resistant materials, high-pressure tolerance, smooth internal structure to prevent clogging and maintain continuous production flow.
Mining & Mineral Processing
Filters slurry and process fluids in mining operations, protecting pipelines and machinery from solid particles and debris.

Operating Conditions: High wear resistance, corrosion and abrasion-resistant materials, robust construction for heavy-duty applications, ensures reliable operation under harsh conditions.
